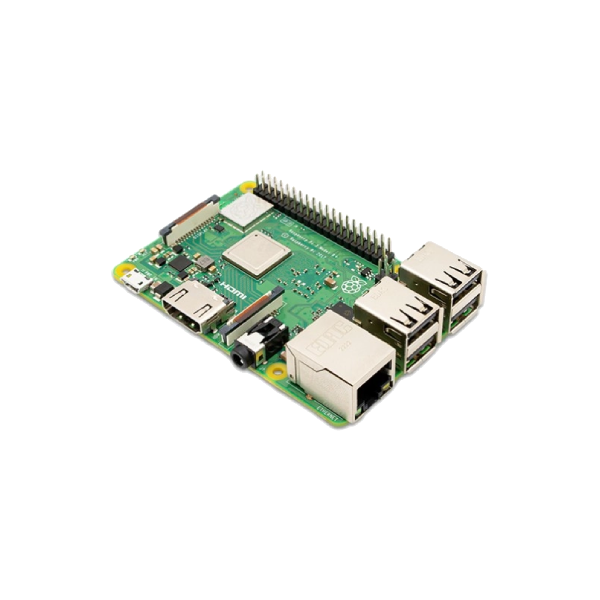

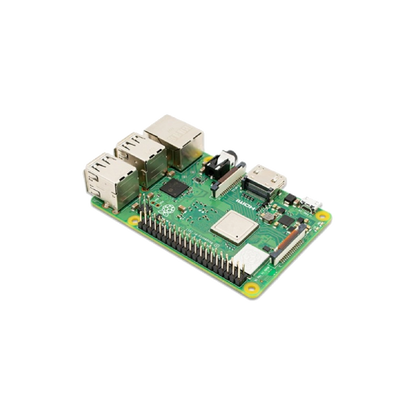

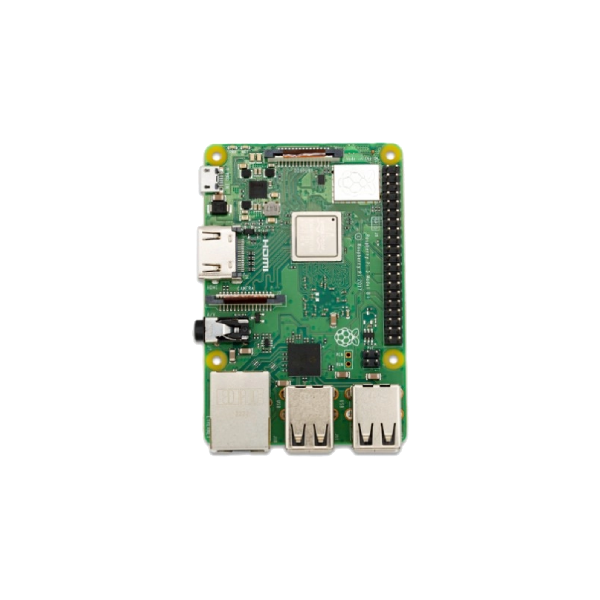

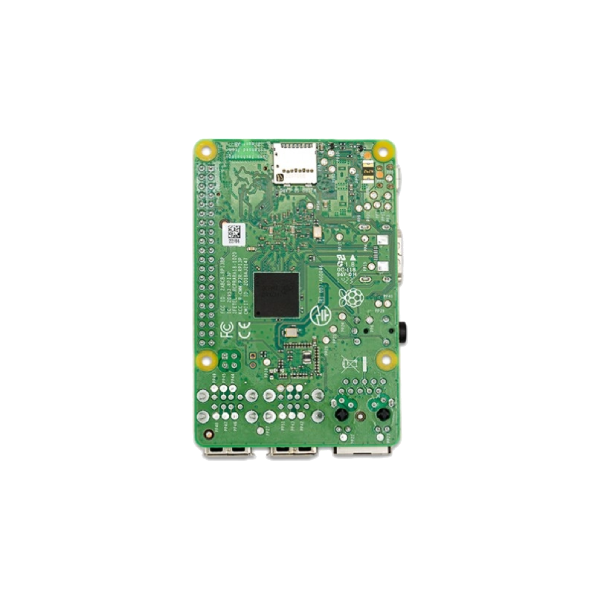

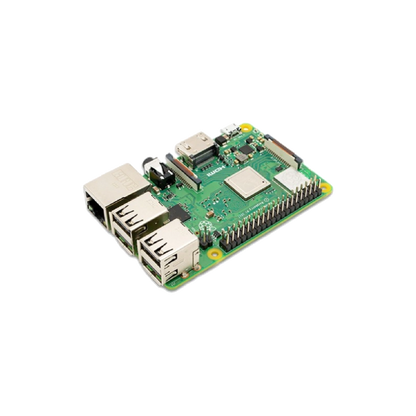

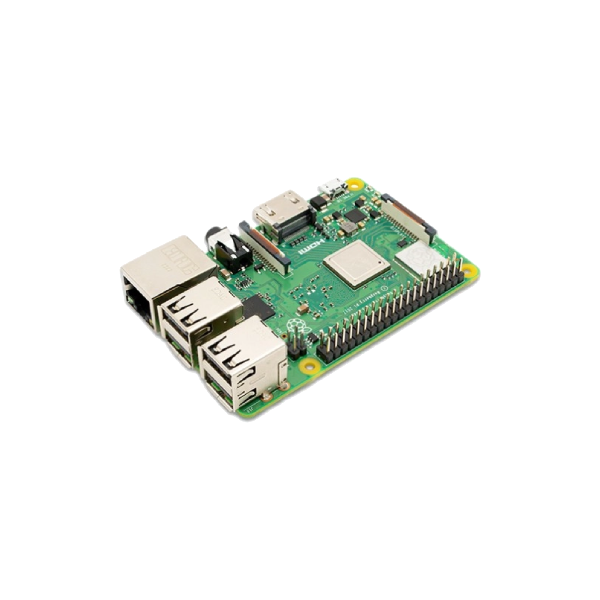

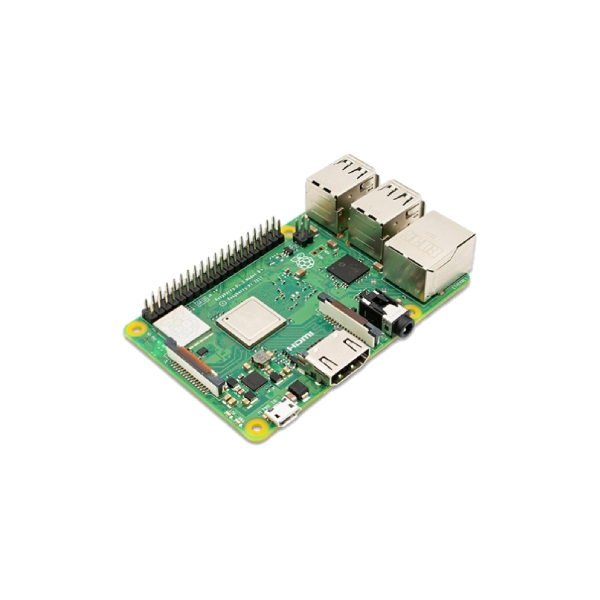

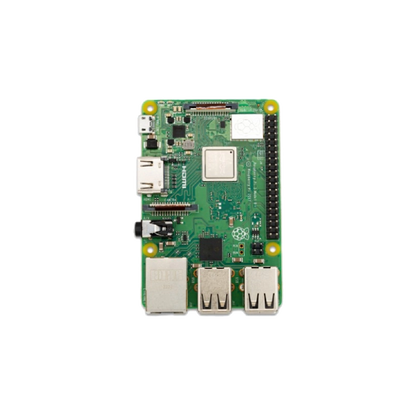

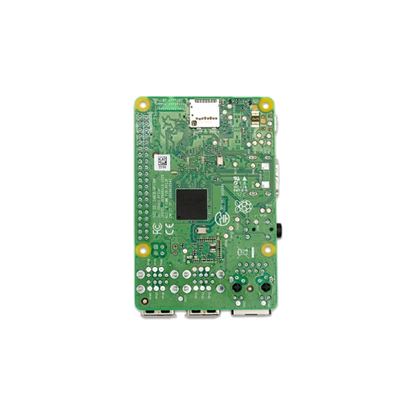

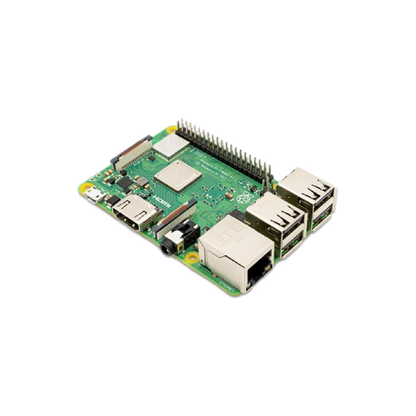

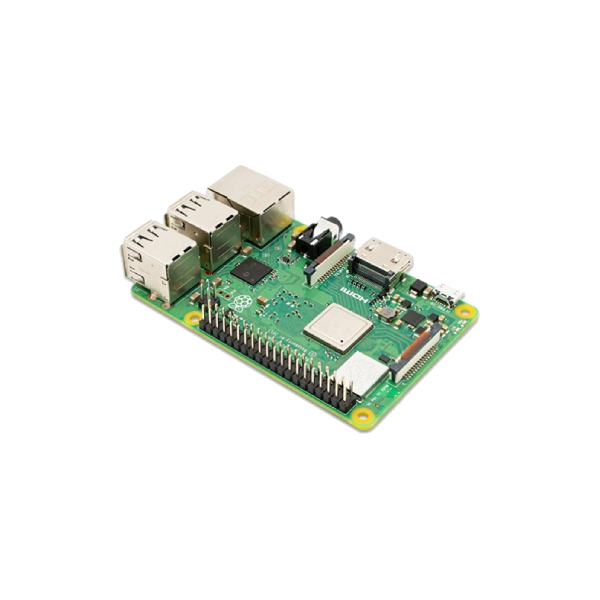

Raspberry Pi 3 Model B+

The Raspberry Pi 3 Model B+ is an improved version of its predecessor, offering increased performance, expanded connectivity, and improved thermal management. Whether you are an electronics enthusiast, developer, or educator, this version stands out for its efficiency, versatility, and accessibility. An ideal solution for IoT projects, multimedia, and much more!

Main features

1. Faster processor
   Equipped with a Broadcom BCM2837B0 quad-core Cortex-A53 clocked at 1.4GHz, the Raspberry Pi 3 Model B+ offers increased processing speed to meet demanding applications.

2. Improved Wi-Fi and Bluetooth connectivity

   • Dual-band 802.11ac Wi-Fi (2.4 GHz and 5 GHz) for fast, reliable connections.
   • Bluetooth 4.2 / BLE to easily connect your devices wirelessly.

3. Gigabit Ethernet via USB
   Enjoy network speeds of up to 300 Mbps with an enhanced Ethernet port, perfect for personal servers and connected projects.

4. Better thermal management
   A heat dissipation plate integrated into the processor improves performance stability during long periods of use.

5. GPIO Compatibility and Extensions
   The Raspberry Pi 3 Model B+ retains the 40 GPIO pins and remains compatible with expansions and accessories designed for previous versions.

6. Multiple USB ports
   With 4 USB 2.0 ports , connect your peripherals like keyboards, mice, and hard drives.

7. High definition display

   • HDMI port for output up to 1080p.
   • Composite video port via 3.5mm jack.

8. Storage via MicroSD
   Load your operating system or store your projects directly to a MicroSD card.

Ideal applications

1. Education and training :
   An accessible platform to learn to code, discover electronics, or teach advanced technological concepts.

2. Multimedia Station :
   Turn the Raspberry Pi 3 Model B+ into a powerful media player with Kodi or Plex, capable of streaming HD videos.

3. IoT and home automation projects :
   Perfect for connected projects like temperature sensors, security cameras or home automation hubs.

4. Retrogaming :
   Relive your childhood memories with emulators like RetroPie or Recalbox, turning your Raspberry Pi into a retro console.

5. Personal server :
   Host a website, set up a NAS server, or expand your personal cloud.

Why choose the Raspberry Pi 3 Model B+?

• Improved Performance : With its faster processor and dual-band Wi-Fi, it meets the needs of modern applications.
• Versatility : Suitable for a wide range of uses, from education to IoT development to multimedia.
• Compatibility : Works with accessories and systems designed for previous versions of Raspberry Pi.
• Rich Ecosystem : Benefit from the vast Raspberry Pi community and abundant educational resources.

Technical specifications

• Processor : Broadcom BCM2837B0 ARM Cortex-A53, quad-core, 1.4 GHz.
• RAM : 1 GB LPDDR2.
• Connectivity :
  • Dual-band 802.11ac Wi-Fi.
  • Bluetooth 4.2 / BLE.
  • Gigabit Ethernet (via USB 2.0, up to 300 Mbps).
• Ports :
  • HDMI.
  • 4x USB 2.0.
  • 3.5mm audio/video jack.
  • 40-pin GPIO.
  • CSI (camera) and DSI (screen).
• Storage : MicroSD.
• Dimensions : 85.6mm × 56.5mm × 17mm.
• Weight : 49 g.
• Operating System : Compatible with Raspberry Pi OS, Ubuntu, and other Linux distributions.
